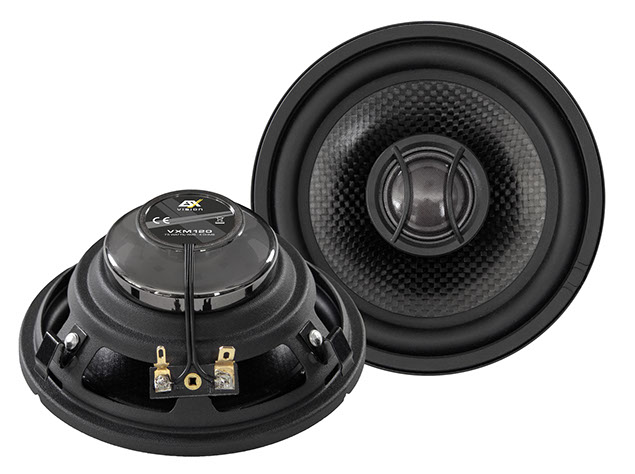

VXM120

12 cm (4.7") 2-Way Coaxial Speakers for Mercedes-Benz W124

With the VXM120, ESX introduces a high-end, vehicle-specific speaker system designed for the Mercedes-Benz W124. As part of the VISION series, it combines modern materials with precise tuning—delivering a linear frequency response and perfect sound. The VISION series represents the pinnacle of the ESX product portfolio, comprising only the most technically and sonically sophisticated developments. The VXM120 is not merely a replacement part but a genuine audio upgrade. The goal was to significantly surpass the limitations of the factory speakers and achieve a detailed, high-output sound profile. The system is thus aimed at users who refuse to compromise on high-quality music reproduction, even in a classic vehicle.



A common issue with the W124 is aging or defective original speakers. While many replacement options exist, there are significant differences in sound quality. The VXM120 was specifically engineered for sonic fidelity, power handling, and efficiency. It incorporates technologies from the high-end car audio sector, such as premium-grade (N42H) dual neodymium magnets. This results in outstanding efficiency of 93 dB/2.83V/1m. Furthermore, unlike ferrite magnets, these require much less space - a distinct advantage given the limited installation depth in the W124 dashboard.



It stands out as a unique feature in this class. Compared to smaller tweeters, the larger diaphragm surface area allows for a lower crossover point with the midrange driver, minimizing potential frequency gaps in the transition range. Additionally, the silk dome ensures linear, low-resonance dispersion and finely detailed high-frequency reproduction up to 22,000 Hz.

Specifications

12 cm (4.7") 2-Way Coaxial Speakers for Mercedes-Benz W124

Power Rating 75/150 Watts RMS/Max.
Impedance 4 Ω

Frequency Range 60 - 22000 Hz

N42H Dual Neodymium Magnet Drivers

Specially Coated Carbon Cones

Chromed Pole Plates

25 mm Silk Dome Neodymium Tweeters

Installation depth 48 mm

Installation diameter 110 mm

Downloads

Owner's Manual

€ 199,00

Manufacturer's suggested retail price, changes and mistakes reserved.
