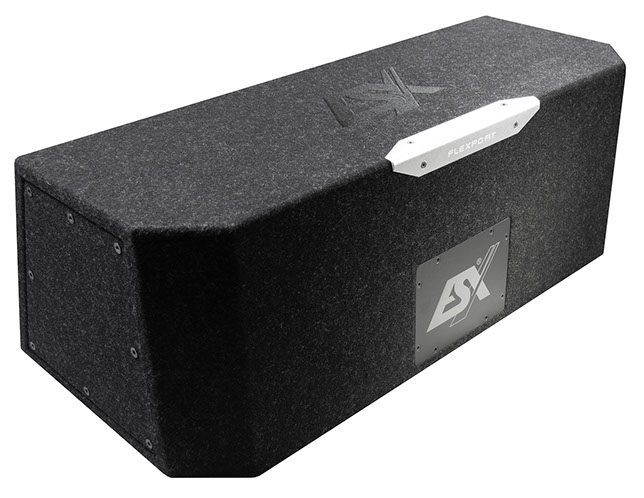

DBX208BPQ

2 x 20 cm (8”) Dual Bandpass System

The new technology is simply explained: the dual box DBX208BPQ is designed as a bandpass system in which the sound pressure leaves a large port. What is special about the constructions is the internal bass channel, which either leads the sound forward or back. Depending on the application, the rear cover of the port, which is designed as a stable aluminum scene, can also be screwed to the front opening. With this alternative assembly, the rear canal opening becomes active and the entire sound pressure can be guided directly into the passenger compartment through the ski sack opening. Especially in convertibles or notcheal vehicles, the dual boxes can develop their full potential. Just awesome!



Besides the conventional connection sockets, where the 2+2 Ω output can also be wired to a single 4 or even 1 Ω output, the box also has the new and innovative Quick Connect socket, which enables a plug+play connection with each amplifier via a 4 -fold Molex socket. This requires special Quick Connect subwoofer cables, available in 4 different lengths.

Specifications

2 x 20 cm (8”) Dual Bandpass System
with Flex Port Technology
Power Rating 400/800 Watts RMS/Max.
Impedance 2+2 Ω

50 mm (2") Voice Coils

Subwoofers with Scooped Paper Cone
High-quality Logo Embroidery

Robust Carpet Cover

Quick Connect Socket

Dimensions 78 x 29 x 39/29 cm

Downloads

Owner's Manual

€ 349,00

Manufacturer's suggested retail price, changes and mistakes reserved.
